Electrical Plans

Most sets of house drawings have a separate electrical plan. This is because if all the information needed for the electrical layout was on the main floor plan, it would be too cluttered.

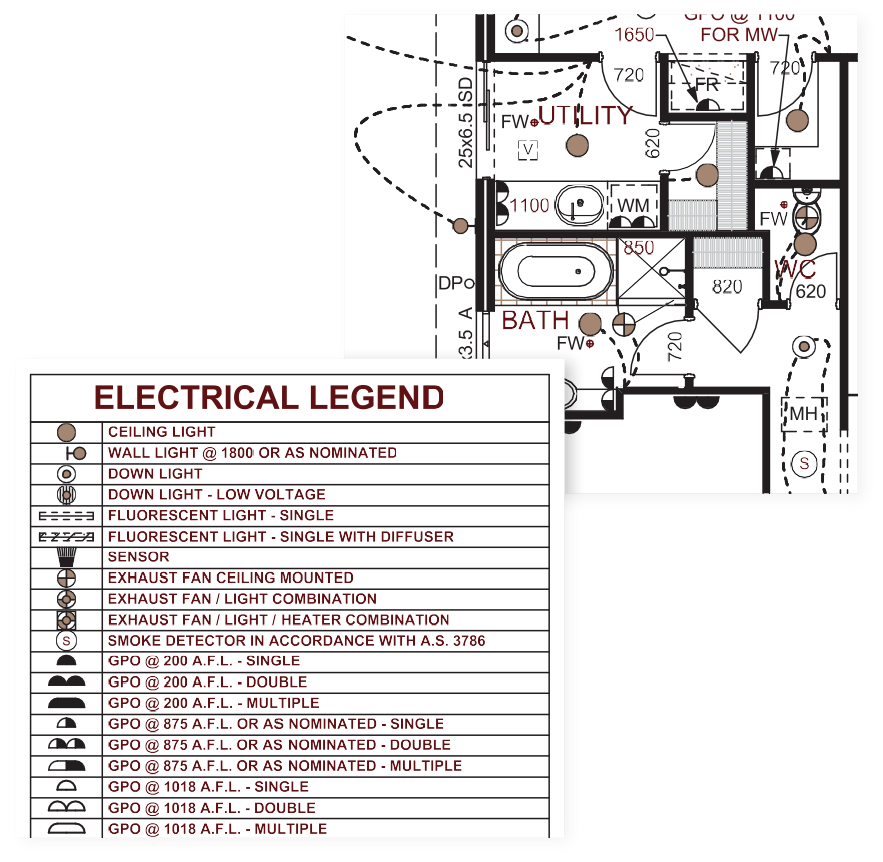

Figure 1.3 shows part of an electrical plan and its legend. There are some strange-looking symbols on it – circles, semi-circles, etc. What these represent is shown in the legend, which will be somewhere on the drawing.
