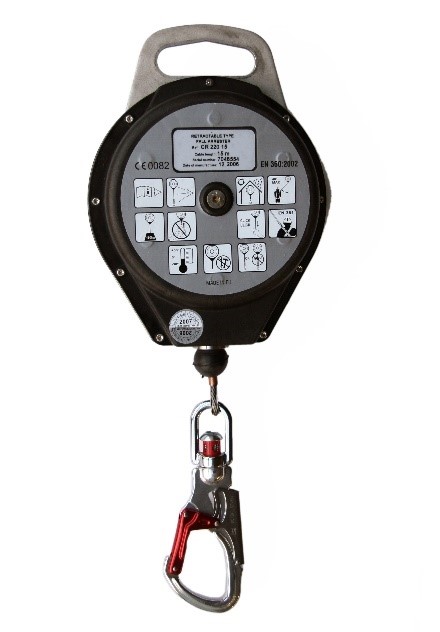

Inspecting Inertia Reels

When inspecting inertia reels make sure you check the following:

Rope
• Make sure the rope can be fully extended and retracts back properly.
• Check the entire length of the rope for any damage (abrasion, fraying, stretching, evidence of contact with heat or chemicals).

Make sure you give the rope a firm pull while fully extended to test the rope is securely attached to the drum of the inertial reel.

Anchorage Body
The main 2 parts to check on the anchorage body are the mounting ring and the casing.
• Check that there is no visible damage to either of these components.
• Also check that there are no loose or missing parts.

Locking Mechanism and Rope Guides
• Check for any wear or damage.
• Check that the locking mechanism is working correctly and holds securely.
• Check that the rope rewinds completely without loss of tension.

Snap Hooks and Links
• Make sure the locking action is working on these parts and that there are no signs of damage or wear.
